Applications
|
|
2-Way Radio/Mobile: ANI, ENI...AE-1 |
||

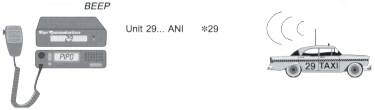

EXAMPLE 1: ANI Each time the radio transmits, the AE-1 sends the unit number (29) to the dispatcher, automatically identifying the unit on the dispatcher’s display, the PD-822. |
|
|

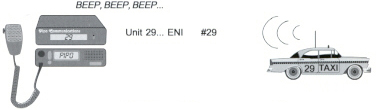

EXAMPLE 2: ENI In an EMERGENCY or ALERT, a hidden button is pushed, the AE-1 sends an ENI, indentifying the unit (29). This activates the dispatcher’s AUDIO ALARM with a continuous beep and a flashing display. To silence, the operator must manually reset. |
 |
|

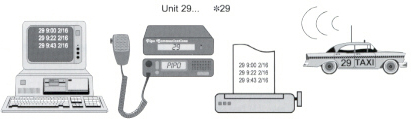

EXAMPLE 3: LOGGING FUNCTION Each unit contact throughout the day is displayed on a computer screen identifying the unit, time and date. This information can be printed out or saved on a disk. |
|
|
| 2-Way Radio/Base-Station: Tone Alert, CW ID, Beacon...AE-1 |
||
EXAMPLE 1: TONE ALERT A tone may be programmed into the AE-1 to send three LOUD BURSTS, 250ms each with a 50ms break at the push of a button. |
 |
|
|
EXAMPLE 2: CW ID A CW ID may be programmed to send at the push of a button. |
 |
|

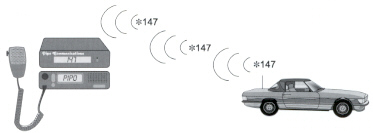

EXAMPLE 3: BEACON A TONE or DTMF STRING may be programmed to send every second, minute, hour for BEACON OPERATION. This can be used to identify and locate each unit, for example, as an auto theft recovery device or auto tracking. |
 |
|
