AE-1 and AE-2...Descriptions & Features

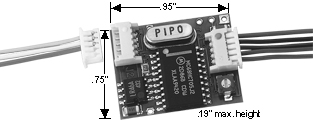

AE-1: 2 Memories, 180 digits total INPUT/OUTPUT			DESCRIPTION The AE-1 and the AE-2 are High-Capacity MICRO MINIATURE HIGH-SPEED DTMF ENCODERS. They are designed into a microcomputer to generate the cleanest, most precise and tranist-free DTMF signal...ever! The OPTIONS and POSSIBILITIES of the AE-1 and the AE-2 are ENDLESS. Being familiar with the PIPO Ver 4.0 programming features, any DTMF string configuration of pauses, waits, xmtr ptt, speed adjustments, delays, memory connect and more is possible. The AE-1 or AE-2 is easily programmed by the factory, the PIPO AE-1/AE-2 KEYBOARD PROGRAMMER or the AE-1/AE-2 INTERFACE BOX. Superb engineering and surface-mount components allow these encoders to fit into the smallest radios, hand-helds and even inside a microphone.
Jack 1 Pin	P-1 1. BLU.... 2. GRN.... 3. BRN.... 4. BLK.... 5. RED....	ANI activate low GND PTT out 100ma max DTMF out 6-26 VDC
Jack 2 Pin	P-2 1. YEL.... 2. WHI.... 3. GRY.... 4. ......... 5. .........	ENI activate low MIC MUTE END WAIT/STOP + 5V PGM + 5V PGM	FEATURES ХааHigh Desity ......Package ХааNonvolatile ......Memory ХааMicrominiature ......Jack/Plug Х CW ID Option Хаа5, 10, 20 DPS ......or Custom ......Time Base Хаа180 Digits ......Total ХааMic Mute ХааPTT Output Хаа1000Hz Tone ......Feature	EASY PROGRAMMING ХааField Programmable ......with AE-1/AE-2 ......Keyboard ......Programmer ХааPC Programmable ......with AE-1/AE-2 PC ......Interface Box ХааFree Factory ......Programming 1-5 ......Units Х Reprogrammable ......ANYTIME

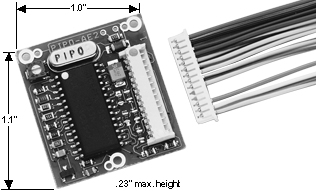

AE-2: 6 Memories, 180 digits total INPUT/OUTPUT
Jack 1 Pin	P-1 1. RED...... 2. BLK...... 3. BRN...... 4. GRN...... 5. Y/BRN... 6. Y/ORG.. 7. YEL...... 8. Y/GRN.. 9. Y/BLU... 10. ORG.... 11. ORG.... 12. GRY.... 13. WHI.... 14. Y/RED.	6-26 VDC DTMF out PTT out 100ma max GND Memory 1 activate low Memory 3 activate low Memory 4 activate low Memory 5 activate low Memory 6 activate low Strap for pgming. only Strap for pgming. only END WAIT/STOP MIC MUTE Memory 2 activate low	SPECIFICATIONS ХааDTMF SPEED...5dps (100/100ms), ......10dps (50/50ms), or Custom Time ......Base ХааAE-1...2 Memories, 180 Digits Max ХааAE-2...6 Memories, 180 Digits Max, ......30 Digits Each Хаа6-26 VDC Stby < .5ma Oper <6ma ХааAE-1 Output Level Adjustable > ......-10db @ 10K ohms ХааAE-2 Output Level Adjustable > -2db ......@ 600 ohms ХааDistortion < 3.5% ХааInputs Activate Loww ХааPTT Collector 100ma ХааTemperature -22° +160°F INPUTS/OUTPUTS ХааInterfacing is accomplished by a MICRO ......JACK/PLUG, with 9Ф flying leads
